So to start this little tutorial the first thing that I need to go through is how to extract the files from the bundle.

And this is how you do it.

So I know that the flags are found in a bundle called CoreContent.bundle
Which is in the folder C:\Program Files (x86)\Steam\steamapps\common\Distant Worlds 2\data\db\bundles\


So to look inside the bundle in that location I use the following command in the next post to list everything inside CoreContent.bundle

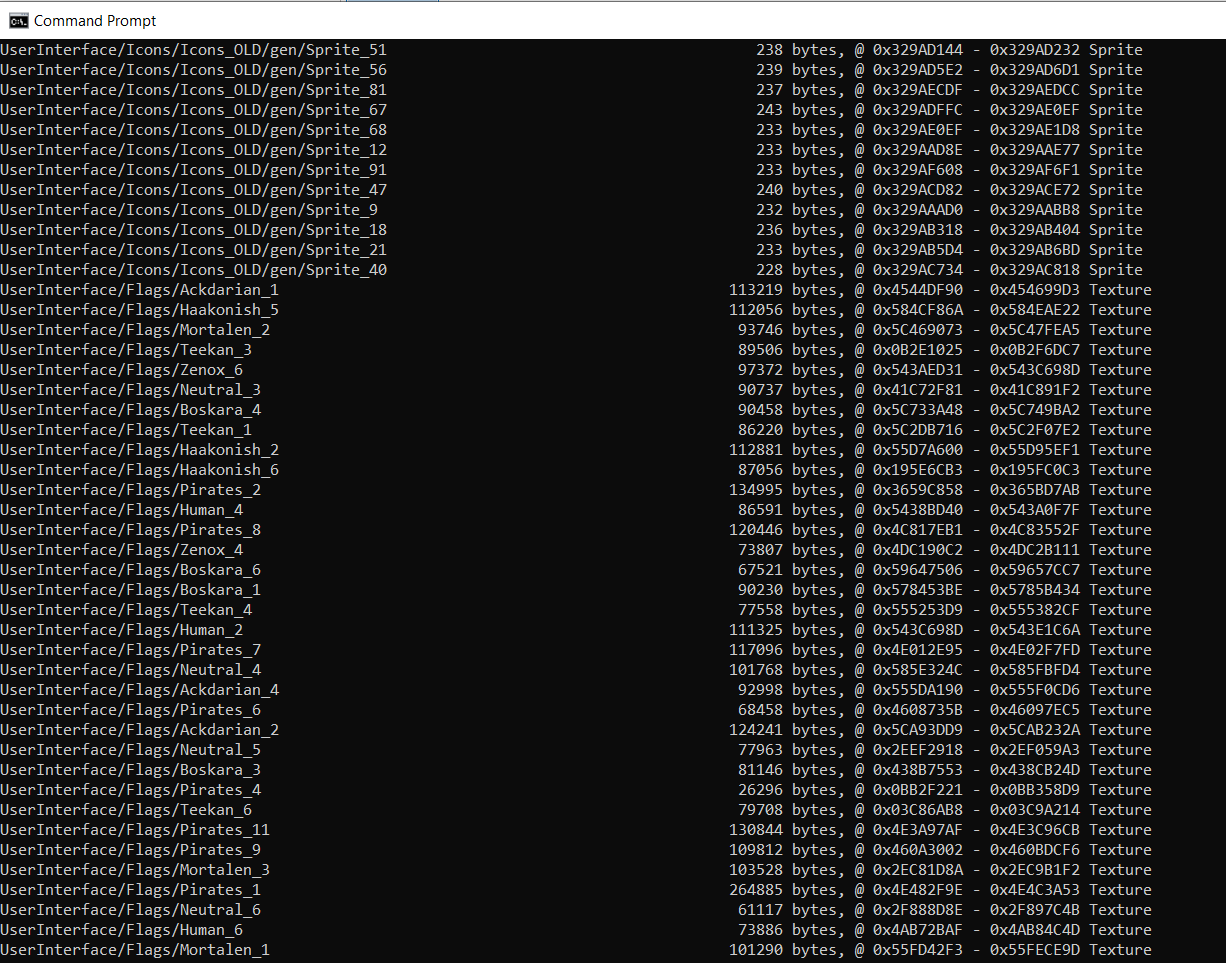

When you run the list command as shown below this is what you get...... a lot of files and folders stored inside CoreContent.bundle.
And when you scroll down the page you will find the section in the bundle containing the flag files inside the folders UserInterface/Flags




dw2bt.exe list "C:\Program Files (x86)\Steam\steamapps\common\Distant Worlds 2\data\db\bundles\Human.bundle"

Now comes the fun part...... how to extract the files from inside CoreContent.bundle specifically inside the folders UserInterface/Flags.

Because we are only interested in getting the textures for the flags and as you can see in the picture on the previous post, it specifically shows on the right of the picture that the files in UserInterface/Flags are Texture files.

Exactly what we want.

Now remember I am running the bundle tool DW2BT.exe from c:/temp so when I run the following command to extract the UserInterface/Flags folder from the bundle file, it will create the UserInterface/Flags folder in the folder I run DW2BT.exe from... in my case c:/Temp

So how to extract those files.

This is what you run and I make sure I add *.* on to the end so it extracts all files in that folder

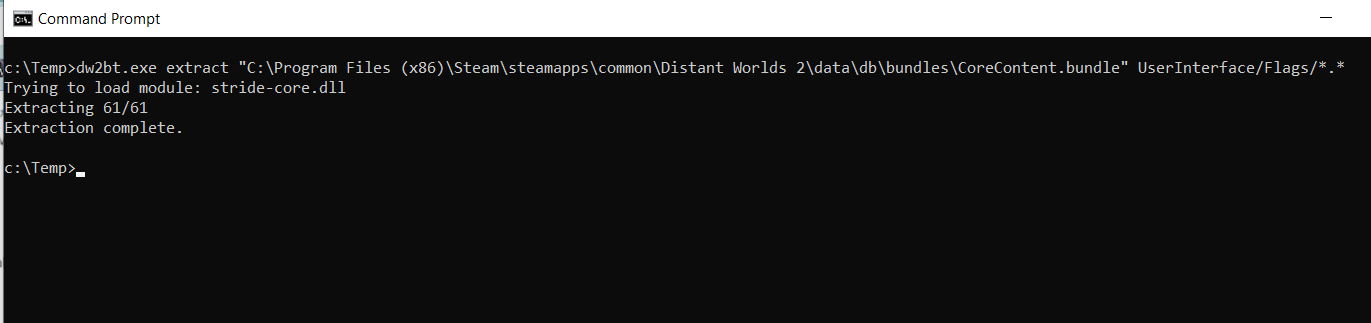

In this screenshot below 61 files were extracted into my folder c:/temp/UserInterface/Flags

Now you have the 61 flag files you can convert them into dds files as shown above.


c:\Temp>dw2bt.exe extract "C:\Program Files (x86)\Steam\steamapps\common\Distant Worlds 2\data\db\bundles\CoreContent.bundle" UserInterface/Flags/*.*

And this is what you will find after running the command in the prior post and you can see the 61 texture files in c:/temp/UserInterface/Flags.

Post removed..... no longer required.

So after extracting the textures of the flags for each race, I needed to ask myself.... Now what do i do?

I have the new Federation flag here as a dds file so how do I get that into DW2 and then get the Federation to show the flag?

To answer that first thing to do is understand where that flag is in the bundle file which in this case is the CoreContent.bundle file

The file structure for the flags is the the flag texture is in the following folders:

- UserInterface
- Flags

And inside the Flags folder is each of the 4 textures for each race.

Ok.... so I know where the textures go.

To create the Bundle file for the Federation flag I would specify the same path to the dds file:
Namely, the dds file is in this location in the bundle UserInterface/Flags.

Ok.... So I have created the new bundle for the Federation flag and have copied FederationFlag.bundle into mky mods folder as well as into "\common\Distant Worlds 2\data\db\bundles".

How to tell my mod to not use the Human_1 flag texture and instead use the FederationFlag texture?

Well DW2 is looking somewhere in my mod for the location of the flag texture and it does not take long to find it.

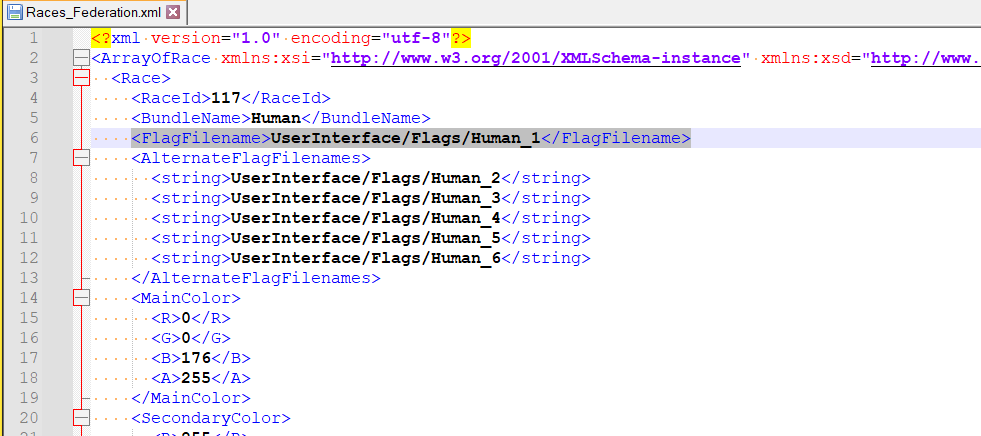

I opened up the Races_Federation.xml file and did a search for flag..... and it came up with the picture below.
Line 6 has this

<FlagFilename>UserInterface/Flags/Human_1</FlagFilename>

All I need to do in this file is change the texture file it is pointing to so it looks like this.

<FlagFilename>UserInterface/Flags/FederationFlag</FlagFilename>

Now when I run the mod in my game, it will look at the Federation Flag instead of the Human_1 flag.

You will also notice that there 5 additional Humam flags listed in the screenshot below... We will look at those later.

So this is what I do.......

I had installed the bundle tool files from Tyler in C:/temp and I then added the CoreContent.bundle file here as well.

I extracted the files from the bundle file here into C:/temp which consisted of the following folders
The folder I wanted for flags was in the folder UserInterface stored inside the CoreContent.bundle file.

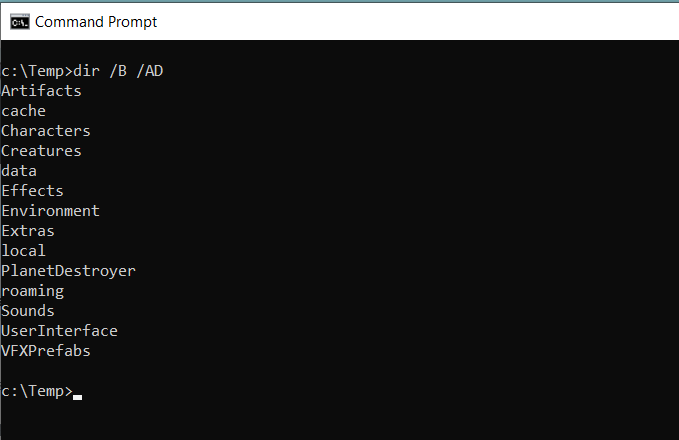

The following screenshot shows the folders inside the CoreContent.bundle file

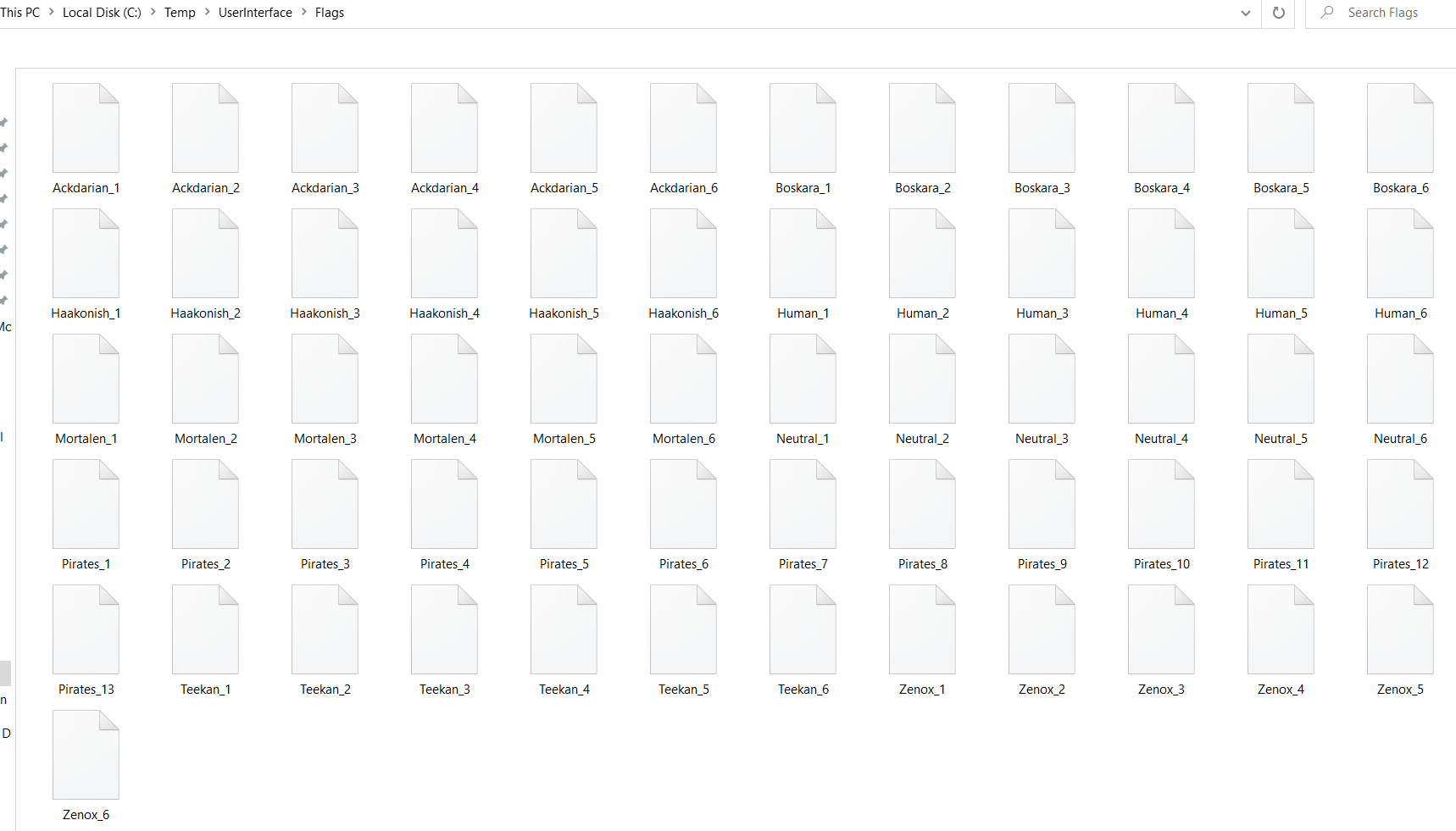

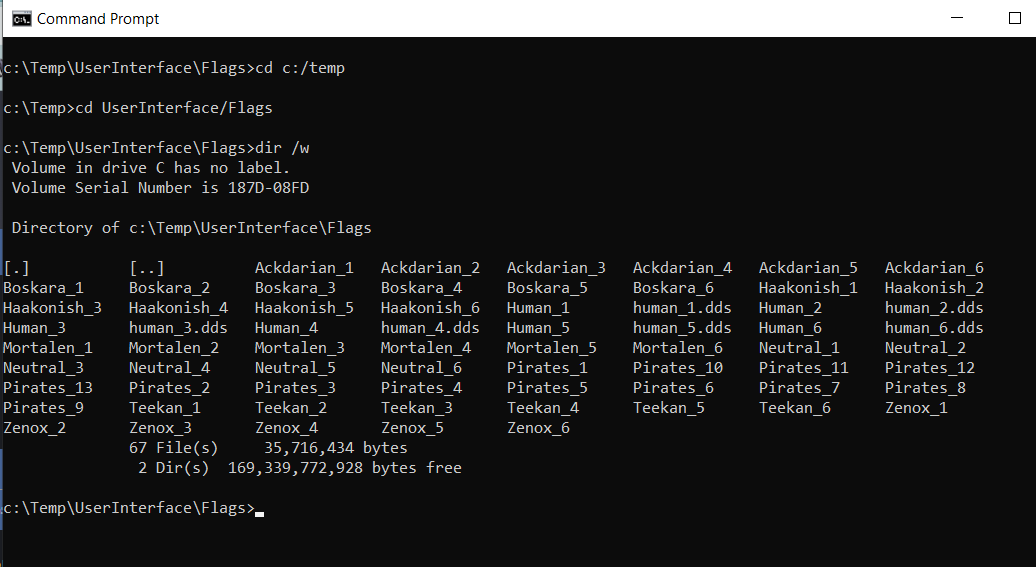

I then change to the directory c:/temp/UserInterface/Flags and then do a dir/w command to show a list all the flags there in dw2
As you can see the Human Flags 1 to 6 are in there.

So now I am at the stage of converting each of the 6 Human flags into dds files which I can modify in paint.net.

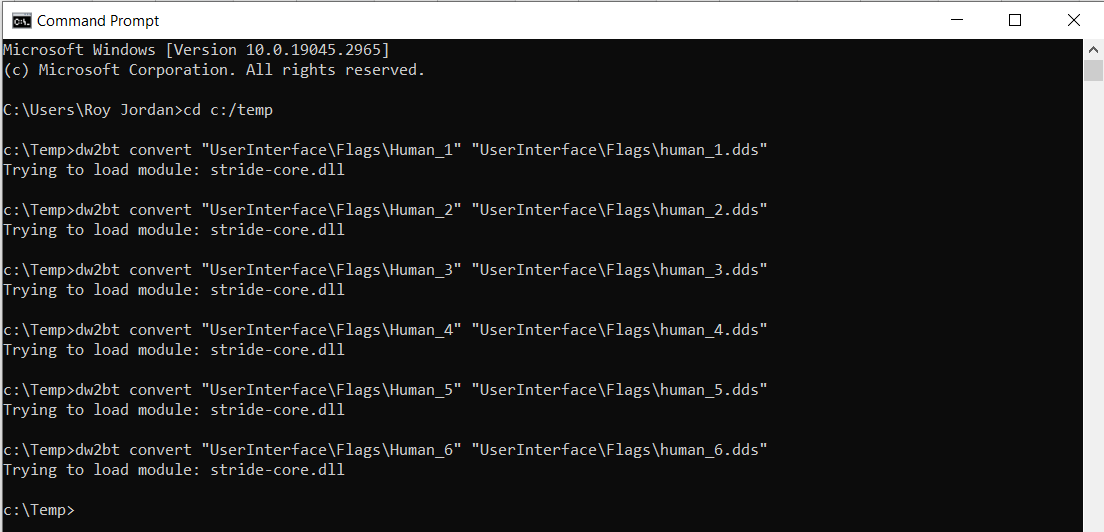

To do this I do the following command as seen below.



c:\Temp>dw2bt convert "UserInterface\Flags\Human_1" "UserInterface\Flags\Human_1.dds"

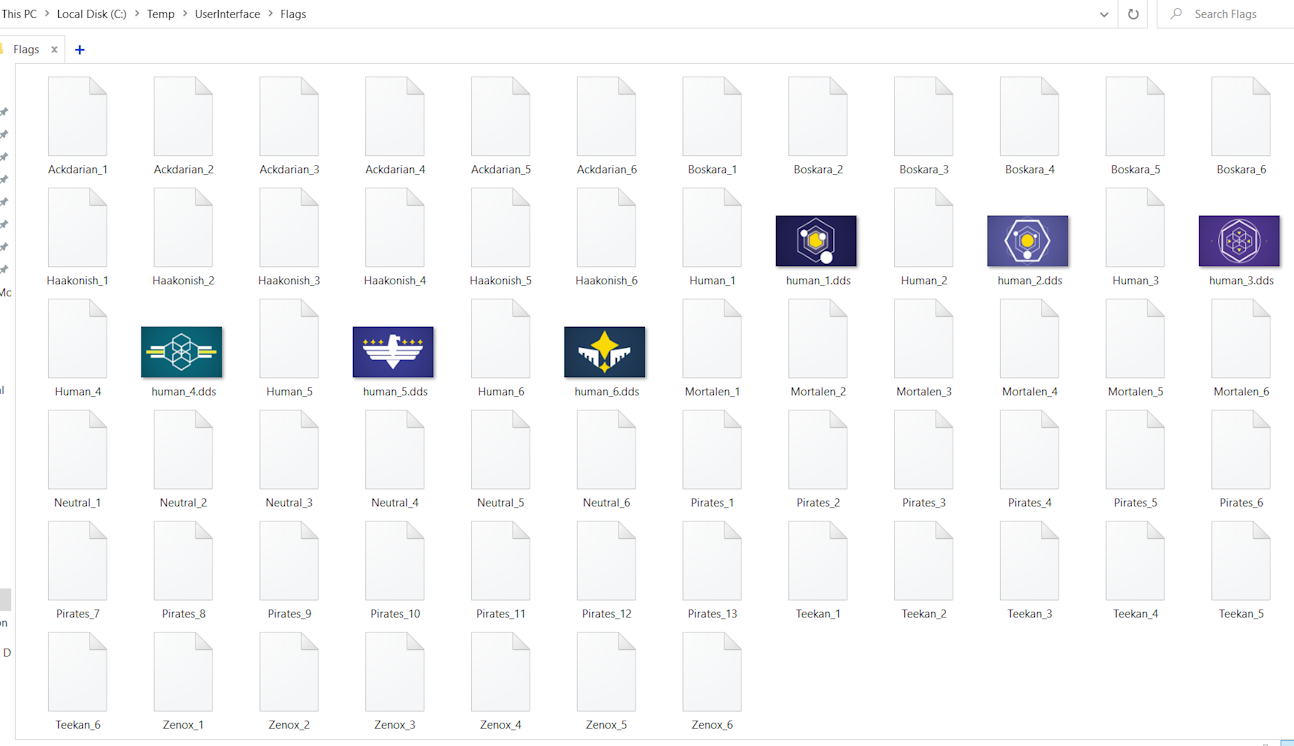

So now I can go into file explorer and have a look at the 6 DDS files I have just converted and which can now be edited in Paint.net.
I did make one mistake when creating the human dds file...... the file it was converted from started with a Capital H......
I converted the file to a DDS file starting with a small h.

Probably a good idea to keep the naming identical though it probably does not matter too much with what I am doing here.

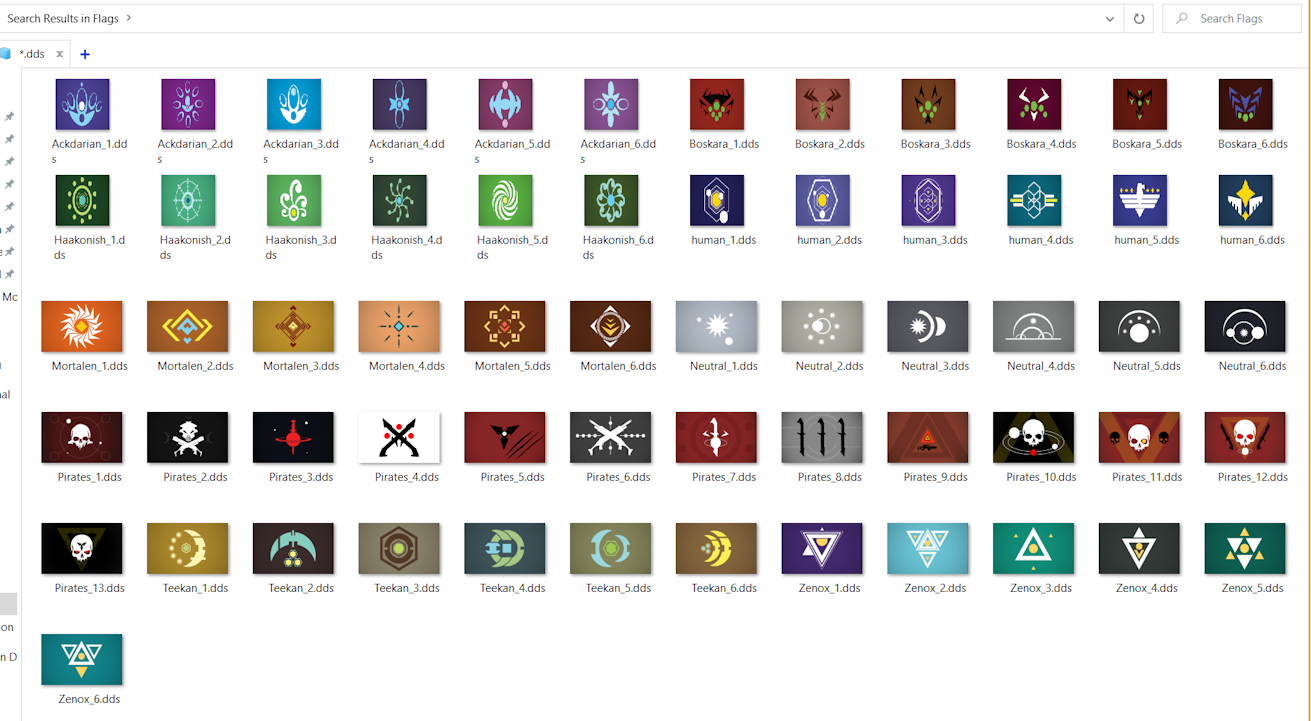

So what I can now do if I want to is to convert every flag in the UserInterface/Flags folder into a DDS file and then look at them in File Explorer as shown below. This has been a quick tutorial of how to extract files from a bundle and convert those files which are textures into DDs files you can modify.
