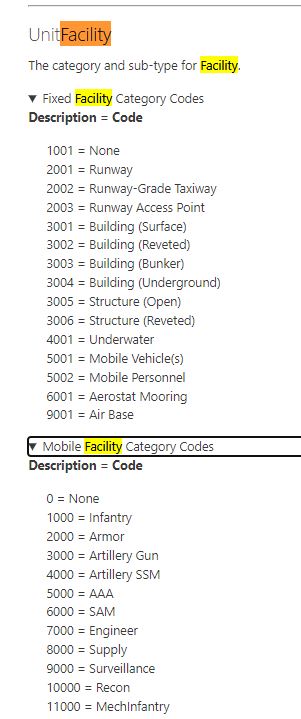

michaelm75au wrote: Tue Mar 15, 2022 2:15 am That is correct, but the 'Mobile' relates to a new type of unit 'Ground' which is not in the Public builds.
I'll update the page to indicate it is 'Pro Only' at the moment.

    0 = None
    1 = Infantry
    2 = Armor
    3 = Artillery Gun
    4 = Artillery SSM
    5 = AAA
    6 = SAM
    7 = Engineer
    8 = Supply
    9 = Surveillance
    10 = Recon
    11 = MechInfantry

0	None
1000	Infantry
2000	Armor
3000	Artillery Gun
4000	Artillery SSM
5000	AAA
6000	SAM
7000	Engineer
8000	Supply
9000	Surveillance
10000	Recon
11000	MechInfantry

1001	Troop Carrying
1002	Open Topped
2001	Amphibious
2002	Combat Swimmer
3001	Reactive Armor
3002	Mesh Skirting
3003	Depleted Uranium Armor (1st Gen)
3004	Depleted Uranium Armor (2nd Gen)
3005	Depleted Uranium Armor (3rd Gen)
4001	Wheeled Vehicle
4002	Half-Track Vehicle
4003	Tracked Vehicle

michaelm75au wrote: Thu Mar 31, 2022 7:16 am As I am going thru every line of the documents at the moment, I will be checking and correcting the page or code that may be incorrect.
One thing I am doing is expanding the function details; they will be more consistent in what they show.
Also I am putting in the actual parameters that are valid for the function rather than relying on the 'selector'. I have found that the 'Selector' is often too broad and doesn't indicated additional (or not valid) items.
This also helps in that you don't need to jump back and forth between the command and the selector pages.lua doc

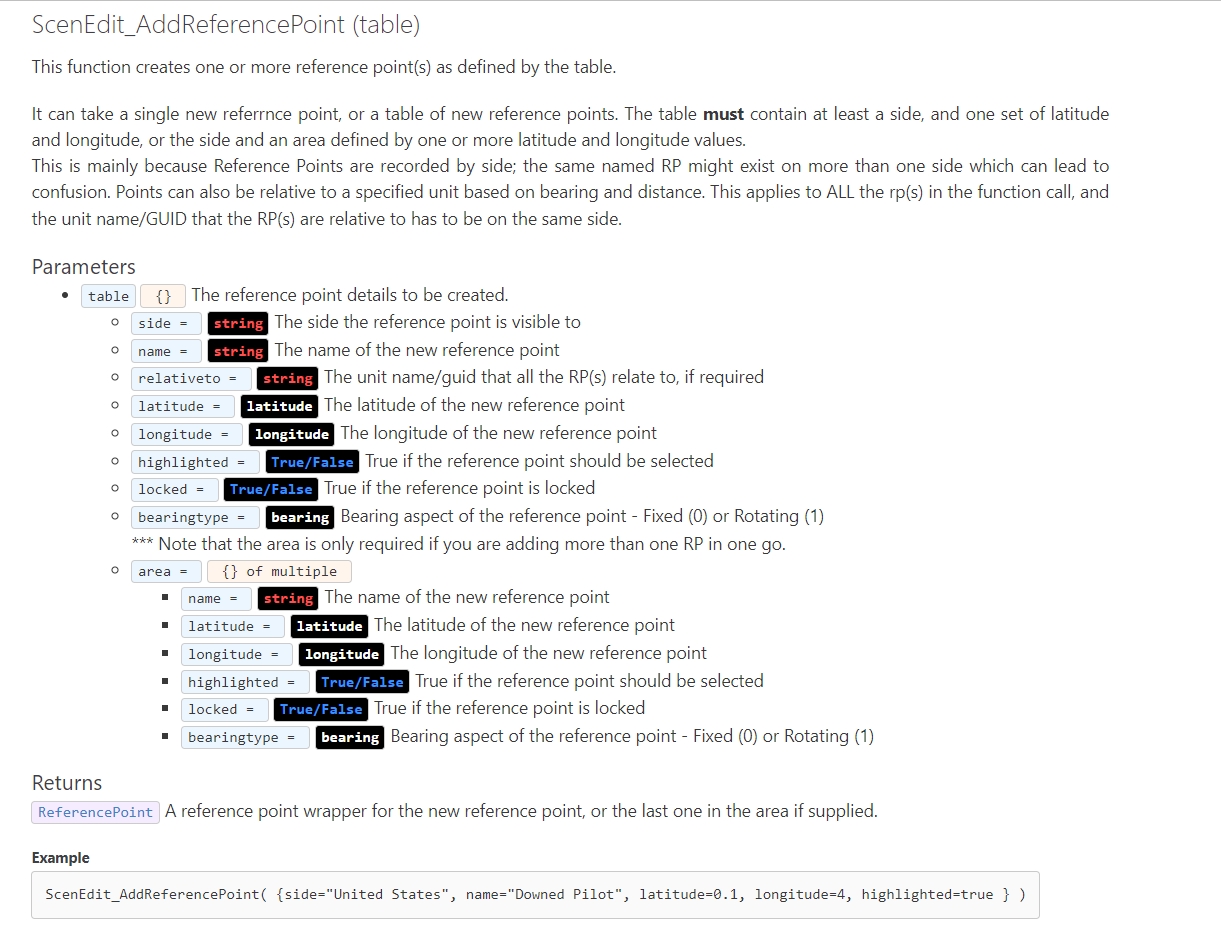

Example below

ReferencePointSelector
Reference point selector.

To select reference point(s), specify either

name and side, to select a reference pointname belonging toside [name AND side if possible] or
guid, if the unique ID of the reference point is known [preferred] or
area, table of reference points (name or guid)

GUID method takes precedence over name/side if both present.
...

ReferencePointSelector
Reference point selector.

To select reference point(s), specify either
name and side, to select a reference point name belonging to side or
guid, if the unique ID of the reference point is known [preferred] or
area, table of reference points (name or guid) - valid for certain functions, such as GetReferencePoints().

GUID method takes precedence over name/side if both present.
In cases where side is not know by context, then both guid and side may be required, such as DeleteReferencePoint().
...

KnightHawk75 wrote: Sun May 08, 2022 10:00 am ScenEdit_SetMission | AAR table.

The documentation leads one to believe TankerMissionList accepts names or guids, such as
TankerMissionList= {'support mission1','support mission2'}; is valid when it is not. At present it must be the mission guid.
ie
TankerMissionList= {'ABCDEF-0000000000123','ABCDEF-0000000000124'};

The code that looks up and the array entry text is fine (it checks both name or guid successfully) and returns the mission, however the outer call also does a check upon return and it only validates/compares checks on the guid property vs the entry text. The later seems to not know the former already did the validation for it, so other then the null check the rest of the extra checks causes the issue (and probably no longer needs to be there).

So either the docs need clarity, or the code eyeballed and tweaked to work as expected and believe already desired.

michaelm75au wrote: Sun Jan 15, 2023 11:58 am Yea, it is missing from the upload. I will find and repost to docs.
