Thread for DB3000 database problems, updates or issues

[cristianwj]

<type>Add</type>

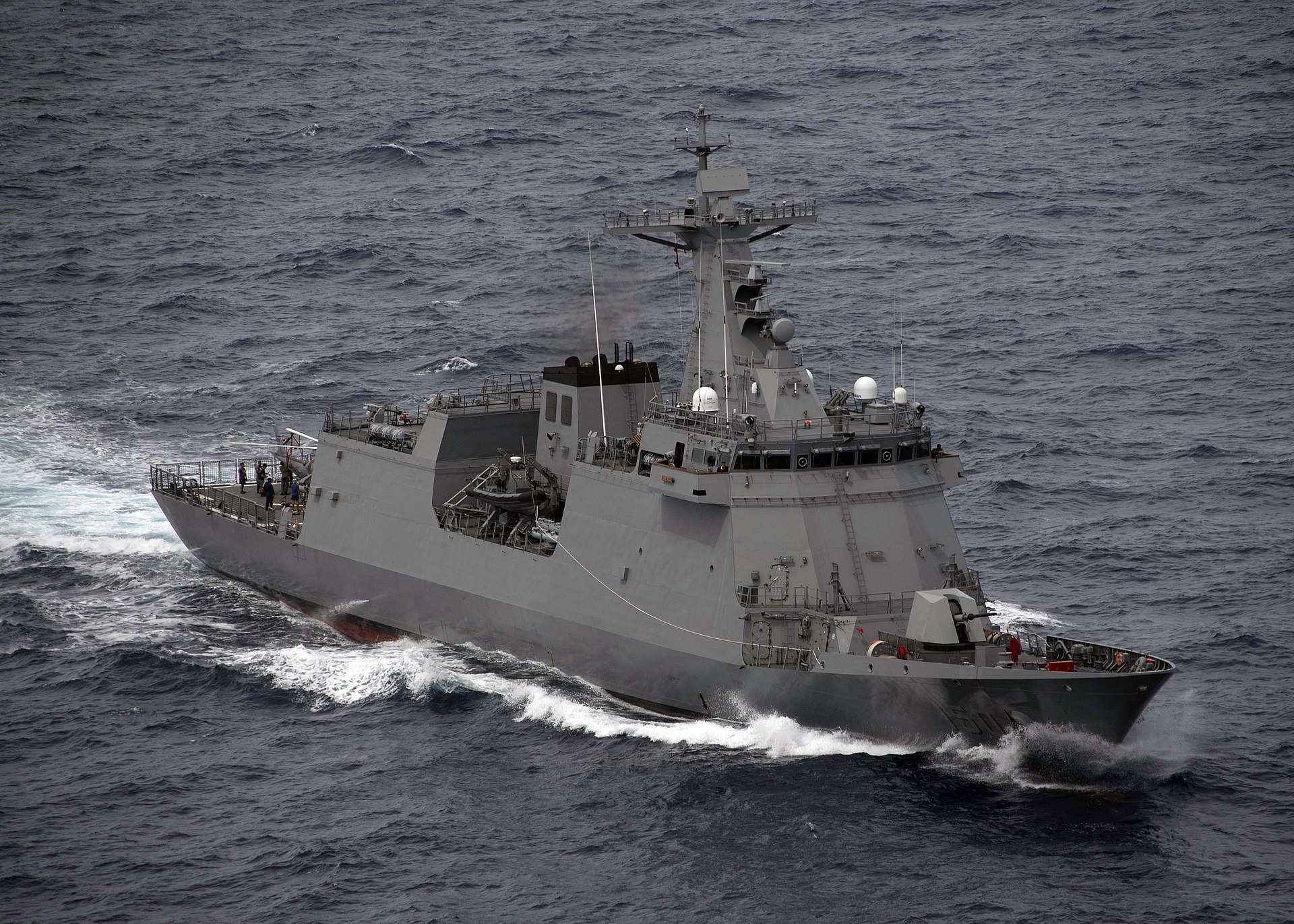

<summary>DB3K, Jose Rizal-class, FFG, Philippine Navy</summary>
<detail>
2 units in class
First unit commisioned 2020
South Korea's Hyundai Heavy Industries build

Displ t.: 2,600t
Dimensions mtr:107.5 x 13.8 x 6.9
Speed kts: 25
Range nm at kts: 4,500
Complement:110
Machinery: 4 × MTU-STX 12V1163-TB93 12-cylinder diesel engines
Other notes:
</detail>
<Evidence>
https://en.wikipedia.org/wiki/Jose_Rizal-class_frigate
https://en.wikipedia.org/wiki/List_of_e ... ppine_Navy
</evidence>

[BDukes]

<type>Update</type>
<summary>Add MML and Cirit to Turkish Anka UCAV Variants</summary>
<detail>
Anka carries MAM-L, CIRIT Rocket Pods. 1st image mixed MAM-L (2) and CIRIT (4),2nd Image Anka-S with MAM-C/L. Looks like first use 2019. Looks MAM-L can carry 2 each so 4 per loadout.</detail>
<evidence>
https://quwa.org/wp-content/uploads/201 ... sh-MoD.png
https://www.reddit.com/r/MilitaryPorn/c ... _1437x949/
https://www.yenisafak.com/en/news/turke ... on-3472398
https://www.ptisidiastima.com/first-com ... -for-anka/
</evidence>

[BDukes]

<type>Update</type>
<summary>Fix Anka A #4978 CIRIT loadout and add laser designator to EO device</summary>
<detail>
Loadout has 38 which is far too many. Looks like 4 per launcher. EO device does have a laser designator for weapons. This may be needed for All Anka variants that will fire laser-guided weapons.</detail>
<evidence>
https://quwa.org/wp-content/uploads/201 ... sh-MoD.png
https://en.wikipedia.org/wiki/Roketsan_Cirit
</evidence>

[Gunner98]

<type>Update</type>
<summary>Fix 5.56mm MG in cargo to be Para capable</summary>
<detail>This is a man portable light Machine Gun, I believe it is an omission</detail>

[KLAB]

<type>Add</type>
<summary>Pacer UCAV (Inokhodets) / Orion-E RUSSIA 2021</summary>
<detail>
The Russia Aerospace Forces Pacer UCAV (Inokhodets) is analogous to the US Reaper and press releases indicate that three ground control complexes each with seven aircraft will enter service in 2021 after testing operationally in Syria in 2019/2020, its export version the ORION-E has been extensively advertised by the Russian Kronshtadt Group at both Russian and International arms fairs.

This system is likely to be the first operational UCAV for Russia and to be extensively exported in due course and is therefore a significant platform.

The tube launched missile in the Vesti video is not identified but Hermes-A x 2 would be logical and well within payload capacity.

For consideration thanks.
K

Target loads
Images show:
4 x KAB-20 GPS guided bombs. http://bastion-karpenko.ru/kab-20-kronshtadt/
Wt. 21kg Length 900mm Diameter 130mm. wingspan 350mm(?). Range circa 8km. (Based solely on this being in the same group as the Turkish MAM-L)

2 x UPAB-50 GPS glide bombs. http://bastion-karpenko.ru/upab-50-kronshtadt/
Wt. 50kg Length 1700mm Diameter 120mm. wingspan 900mm. Range circa 30km.

2 x KAB-50 - Various guidance systems but including laser, IR/EO http://bastion-karpenko.ru/kab-50-kronshtadt/
Wt. 46kg (varies by guidance) Length 1700mm Diameter 120mm. wingspan 290mm. Warhead 37kg Range not disclosed but at least 10km from altitude would seem easily achievable.

1 x 100kg FAB/OFAB type dumb bombs on centreline.
Narrative in the Youtube Video indicates a variant of the SVP-24 bomb guidance system is fitted to improve the accuracy.

Sensors
Optoelectronic system with TV and IR channels,
High resolution digital aerial photography system,
Radar system,
"Equipment for direction finding of radio emission sources".


SPECIFICATIONS

Dimensions, m
Wingspan16.3
Height 3.2
Length 8

Mass, kg
Maximum takeoff 1000 kg
Normal / Maximum target (pay / combat) load 60/250
Cruising 200 km/h
Maximum flight duration, h 24.0
Maximum flight altitude, m 7500
Range of application (with UAV-repeater), km 300</detail>

<evidence>
https://kronshtadt.ru/products
https://kronshtadt.ru/products/orion-e
https://rg.ru/2021/03/02/armiia-poluchi ... -godu.html
https://yandex.ru/turbo/mk.ru/s/politic ... yandex.com
s.mds.yandex.net%2Fget-turbo%2F1407983%2F2a000001653abd09e28122983da51195fb3d%2Forig&promo=navbar&utm_referrer=https%3A%2F%2Fzen.yandex.com
https://yandex.ru/turbo/mk.ru/s/politic ... yandex.com
https://youtu.be/j00693-sC5s
https://dronedj.com/2021/02/24/russian- ... -in-syria/
https://www.airforce-technology.com/fea ... ck-drones/
https://www.thedrive.com/the-war-zone/3 ... s-in-syria

</evidence>

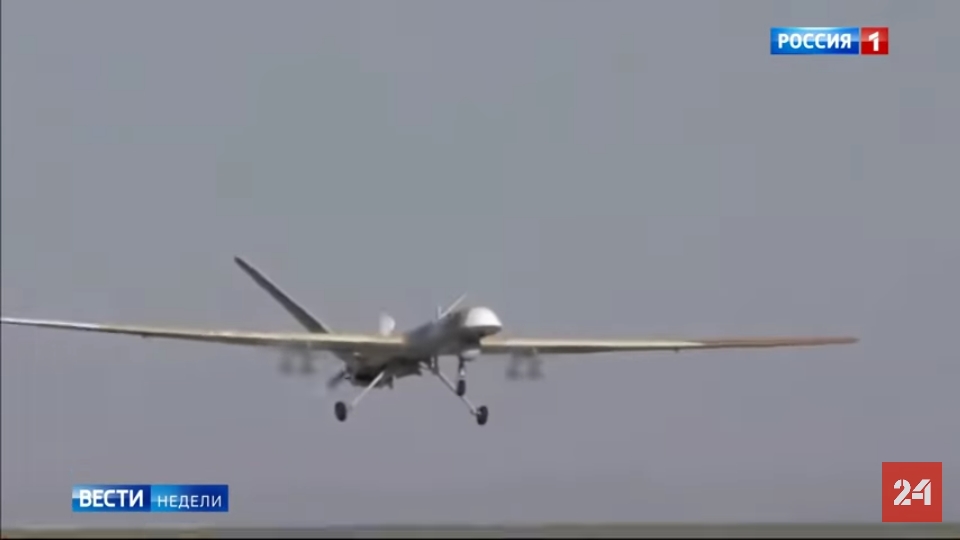

Image still from Vesti News article. Blurred weapons are highly likely to be 4 KAB-20.

[Blast33]

<type>Update</type>
<summary>Please add Singapore to the Hermes-900 users</summary>
<detail>Elbit announced on Mar. 2 that it has secured a contract worth $300 million to sell its Hermes 900 to an unnamed country in Asia. According to Israel Defense, the country is Singapore.

The country has three squadrons that in the past were only made up of Searcher drones. One squadron was replaced with Heron drones, the second was replaced with Hermes 450s, and now the third is being replaced with 12x Hermes 900s.
The term of the contract is 5 years.</detail>
<evidence>
http://alert5.com/2021/03/05/elbit-said ... singapore/
https://www.israeldefense.co.il/en/node/48689
https://elbitsystems.com/pr-new/12759/
</evidence>

[KLAB]

<type>Add</type>
<summary>Add Yak-130 Mitten (Myanmar- 2017)</summary>
<detail>Myanmar received it first three Yak-130's in March 2017 and has a total of 12.

They have been used in combat.

Weapon loads:
Air to ground:
2 to 4 x 20 round S-8 80mm rocket pods,
2 to 4 x 5 round S-13 122mm rockets,
2 to 4 x 100kg FAB/ZAB/OFAB
2 to 4 x 250kg FAB/ZAB/OFAB
2 to 4 x 500kg FAB/ZAB/OFAB/RBK

Air to air

2 to 4 R-73 / AA-11 Archer AAM

Plus combinations of two 450l drop tanks and a centreline Yak-130 specific 23mm SNPU-130 gun pod with 23mm GsH-23L and 120 rounds.
Algerian Yak-130 have also been carrying weapons and filmed deploying chaff/flares</detail>

<evidence>
http://eng.mil.ru/en/news_page/country/ ... 128@egNews
https://sputniknews.com/military/201703 ... -supplies/ Delivery summary.
https://southfront.org/wp-content/uploa ... AEJPrm.jpg Armed Yak-130 2 x S-8 RP 2 X 450 drop tanks.
https://1.bp.blogspot.com/-6Sncd9CJ4Hs/ ... ar-22.jpeg
Armed Mynamar Yak-130 in flight 2 x S-13 rockets and 2 x R-73 (inert) plus centreline 23mm gun pod and 450 litre PTAB drop tanks.
https://thaimilitaryandasianregion.blog ... k-130.html Yak-130 firing rockets.
https://thaimilitaryandasianregion.file ... .jpg?w=625 Schematic of typical stores arrangements.
https://dfnc.ru/en/aviazcia/the-yak-130 ... 20provided. Algerian Yak-130 story plus image of flares being deployed.
</evidence>

For consideration, thanks.
K

[Boagrius]

<type>Update</type>

<Summary>Weapon datalink for LRASM missile</summary>

<detail>The AGM158C LRASM features a weapon datalink allowing it to receive guidance updates and course corrections while en route to the target. This datalink does not seem to exist in-game at present, for example between RAAF Super Hornets and the LRASMs they launch. It seems to be possible IRL for the weapon datalink to be established between the missile and any sufficiently equipped sensor node, not just the launch platform, however an in-game depiction of the link between missile and shooter alone would still enhance existing functionality. One of the key distinguishing features of the LRASM is also its ability to passively and autonomously seek out its target via onboard passive ESM sensors (presumably while cruising at higher cruising altitude to establish LOS), and plot route changes around pop-up threats. This feature is not currently modeled in-game (may not be possible?).

<evidence>
https://govtribe.com/opportunity/federa ... pma2010301
https://www.c4isrnet.com/c2-comms/2017/ ... data-link/
https://www.sipri.org/sites/default/fil ... 1117_0.pdf
https://www.airuniversity.af.edu/Portal ... SR_RTF.pdf
https://youtu.be/h449oIjg2kY
</evidence>

[AceOfSpadeszzzzzz]

<type>Update</type>
<summary>The type 055 seems to have the wrong number of SA-10 Missile Datalink</summary>
<detail>In the previous version of DB(v483 for example), the ship has 24 SA-10 Missile datalinks, while in DB v487 it only has one.</detail>
<evidence></evidence>

[BLiboy]

<type>Update</type>
<summary>FTI Belharra: Update frigate name + Sea fire AESA sensor range</summary>
<detail>
FTI Belharra has become FDI (Frégate de Defense et d’Intervention – Intervention and Defense Frigates) since 2018.
Sea Fire AESA detection range is 500 KM (270 nm)</detail>
<evidence>
https://www.navalnews.com/naval-news/20 ... -facility/
https://www.ptisidiastima.com/wp-conten ... re-eng.pdf
</evidence>

[Boagrius]

<type>Update</type>

<summary>Add two-way datalink and longer range Hi-Hi-Low flight profile to JSM missile</summary>

<detail>Open source information indicates that the JSM missile features a two-way datalink that is not currently modeled in-game. Depicting a datalink between the weapon and the launch platform would largely rectify this. Furthermore, the range of the JSM is restricted in-game by the use of a low-low-low flight profile, which currently limits the missile's range to ~150nm. Including the high-high-low profile should double its range to over 300nm according to available sources. A possible solution would be to set the in-game JSM to use a hi-hi-low flight profile when launched between ~300-150nm from the target, and the low-low-low profile when launched inside 150nm.</detail>

<evidence>
https://ndiastorage.blob.core.usgovclou ... bright.pdf
https://www.australiandefence.com.au/ne ... -australia
https://www.defensenews.com/air/2018/07 ... test-test/
</evidence>

[KLAB]

<type>Update</type>

<summary>DB3k #3126 AA-12 Adder C [R-77M] Amend range to 104nm (193km)</summary>

<detail>Open source information indicates the latest incarnation of the R-77 NATO AA-12C Adder variously designated as R-77M Idz-180 has a range in the region 104nm / 193km, although there is no qualification of in what circumstances this is achieved it could be assumed to be in ideal circumstances with a non evading large target head on.
As this is the principle air to air weapon of the Su-57 it would seem logical that it was designed with known characteristics of OPFOR weapons in mind and to be geared to out range the AIM-120D , one of the few advantages of playing techno catch up being that you know what it is your up against?
Despite some dialogues it appears to be a dual impulse rocket not a Meteor like ramjet</detail>

<evidence>
https://fighterjetsworld.com/air/russia ... jet/23543/
https://rg.ru/2020/10/05/meniaet-pravil ... su-57.html
http://nevskii-bastion.ru/2020/10/05/06-10-2020/
https://rg.ru/2020/10/05/meniaet-pravil ... su-57.html
http://bastion-karpenko.ru/rvv-sd/
</evidence>
for consideration to amend the range?
Thanks
K

[BDukes]

<type>Add</type>

<summary>Add Myanmar Makassar class LPD 1501 Moattama 2021</summary>

<detail>Myanmar receive a Makass LPD in 2019 but first operational cruise 2021. Moattama is a 122 m LPD that was commissioned in December 2019. The vessel was launched in Busan, South Korea around July 2019, and is largely similar to the Makassar-class LPDs supplied by DAE SUN Shipbuilding and Engineering Company to Indonesia and Philippines. Displacing about 11,300 tonnes, Moattama is Myanmar Navy’s largest vessel yet. It has a flight deck that can accommodate two medium Mil Mi-17 transport helicopters. Additionally, the vessel can also carry 15 armoured vehicles and a contingent of 250 marines. Can copy #2421. No visible weapons. </detail>
<evidence>
https://en.wikipedia.org/wiki/UMS_Moattama
https://twitter.com/CollinSLKoh/status/ ... 0573983748
https://www.janes.com/defence-news/news ... operations
https://aagth1.blogspot.com/2019/12/lpd ... l?spref=tw
</evidence>

[BDukes]

<type>Add</type>

<summary>Add Vietnamese KA-28 1990 x 10</summary>

<detail>Vietname received 10 KA-28PL in 1990. Used on Gepards and air stations. Can copy #637 </detail>
<evidence>
https://twitter.com/DavidDetten/status/ ... 7097660419
https://www.reddit.com/r/MilitaryPorn/c ... and_dhc_6/
https://medium.com/indo-pacific-geomill ... 24deb08172
https://armstrade.sipri.org/armstrade/p ... gister.php
</evidence>

[Coiler12]

Issue with the GBU-KGGB (Weapon #3726) I saw: Its database entry doesn't have flags for being able to attack "hard" land targets, despite other weapons with a similar sized warhead having those/being capable of doing so.

[Hunter98]

<type>Add</type>

<summary>F-5T/TF Tigris and F-5TH/THF Super Tigris (TF and THF are the Twin-Seater version)</summary>

F-5T Tigris (2000)


F-5TH/THF Super Tigris (2019)

Sensor/Equipment

- EL/M-2032 Radar
- Pilot equipped with with DASH IV helmet
- Rafael Sky Shield Jamming Pod
- AN/ARC-164 Have Quick II Jam-Resistant Radio
- Revamped cockpit
- Link-T Datalink System

Loadouts

- Can use three types of AAM, AIM-9M, Python-4 and IRIS-T
- A2A loadout of BVR (2x Derby, 2x IRIS-T) and WVR (4x IRIS-T)
- Precision Guided A2G option of Lizard
- Standard Unguided A2G loadout similar to other F-5Es

<evidence>
Photographic evidence

F-5TH with IRIS-T

https://1.bp.blogspot.com/-ZyMwTxEqkQk/ ... gris-1.jpg

DASH IV helmet for the pilot

https://1.bp.blogspot.com/-LMY6lb9Rg9k/ ... 25A8-4.jpg

F-5TH carrying Lizard PGM

https://1.bp.blogspot.com/-tWR8DSwIej8/ ... BLGB-2.jpg

General plan for upgrade

https://2.bp.blogspot.com/-YRrNo5rqKpc/ ... ess-16.jpg

[Boagrius]

<type>Update</type>

<summary>Adjust CEA OPS and CEA TAC radars in Australian NASAMS units</summary>

<detail>In-game Australian NASAMS units appear to feature incorrectly depicted radars. In reality, the CEA-OPS radar is a larger truck-mounted GaN AESA used for volume search as well as FCR functions. The CEA-TAC radar is a smaller Hawkei mounted GaN AESA likely designed more strictly for FCR purposes.

<evidence>
https://www.raytheon.com/sites/default/ ... d=66006150
https://adbr.com.au/cea-unveils-hawkei- ... -19-ph-7b/
https://www.australiandefence.com.au/de ... 9-phase-7b
</evidence>

[Boagrius]

<type>Add</type>

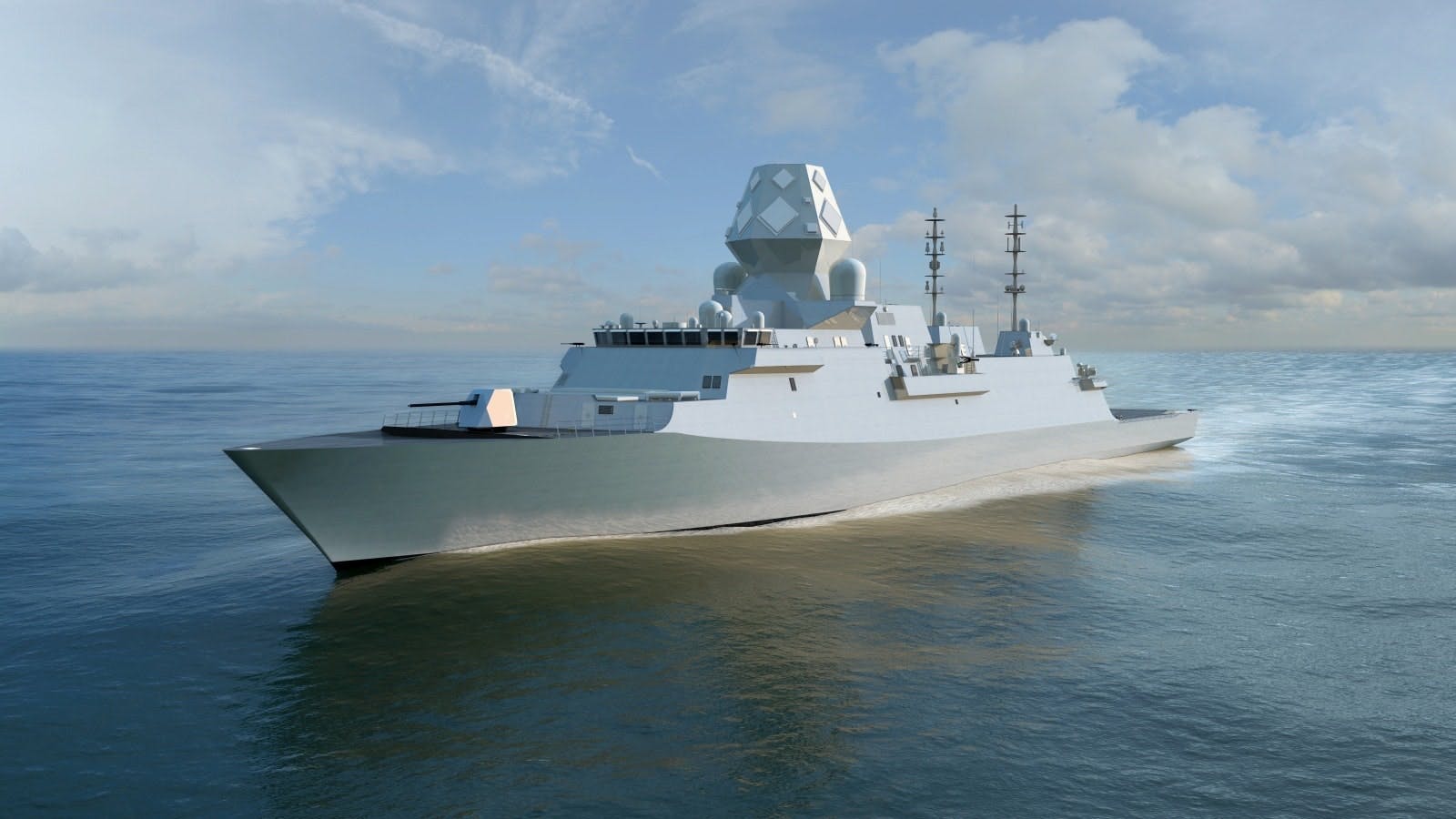

<summary>Add Hunter Class variant of Type 26 Frigate</summary>



<detail>The Hunter Class Frigate was selected to replace the ANZAC Class Frigates in RAN service under the SEA5000 program. Based on publically available information, the vessels will include the following features:

Sensors & Combat System/Interface
- CEA FAR2 GaN AESA
- Ultra S2150 Hull Mounted Sonar
- Sonar 2087 towed array and VDS
- Aegis combat system
- Saab 9LV tactical interface

EW/Decoys
- Nulka decoy launchers
- Nixie torpedo decoys (likely)

Armament
- 1 x 32 cell Mk41 VLS for: SM2 Blk IIIC, SM6 Blk I(A/B), ESSM Blk II, long-range anti-ship/land-attack cruise missile (TBD)
- 2 x 4 cell topside canister launched AShM (TBD) - likely candidates are NSM or LRASM
- 1 × 5-inch 54 calibre Mark 45 Mod 4 dual-purpose gun
- 2 x CIWS - likely Phalanx IB
- 2 x 30mm gun mounts
- MU90 lightweight torpedos

*Other features should be common across Type 26 variants

<evidence>
https://www.defenceconnect.com.au/marit ... technology
https://www.defenceconnect.com.au/marit ... te-program
https://thediplomat.com/2021/01/austral ... ter-china/
https://www.australiandefence.com.au/de ... 00-phase-1
https://www.aspistrategist.org.au/whats ... s-program/
https://www.navy.gov.au/fleet/ships-boa ... future/ffg
</evidence>

[14yellow14]

<type>Update</type>

<summary>Update Facility #3161 TBG to LRHW</summary>

<detail> 4 TEL per battery (2 canisters per TEL)

LRHW battery fielding will complete in Fiscal Year (FY) 2023 with the delivery of live missile rounds.





</detail>


<evidence>
https://www.thedrive.com/the-war-zone/2 ... -look-like
https://defence-blog.com/news/army/lock ... ystem.html
https://twitter.com/nktpnd/status/1314257209895849987
https://www.dvidshub.net/image/6560158/ ... c-delivery

</evidence>

[NorthernFox]

<type>add</type>
<summary>Add F-16C/D Blk 32 PBU [Peace Bridge Upgrade]</summary>
<detail>At the end of 2016, Korea completed a total of 34 F-16 BLOCK 32 PB upgrades program.

AN/APG-68 has replaced with APG-68(V)7, AIM-120B/C, GBU-31, AGM-88, AGM-84, AIM-9L/M/X, AGM-65G integration
New mission computer (MMC-7000), LN-260 EGPS/INS, MIDS/LVT-6 (LINK-16), New AIFF System.


Photo of the F-16D Block 32 PBU #90-941 armed with AIM-120C and AIM-9

</detail>
<evidence>
https://www.dsca.mil/sites/default/files/mas/rok_09-23.pdf
https://www.dsca.mil/sites/default/files/mas/korea_20-15_cn.pdf
https://en.yna.co.kr/view/AEN20161219004500315?section=search
https://www.airliners.net/photo/South-Korea-Air-Force/General-Dynamics-F-16C-Fighting-Falcon-401/5808747/L?qsp=eJwtjcEKwjAQRP9lz3oQsdTe6g/owR9YNkMNxCbsrtBS%2Bu/G4G1485jZSPLsWPy5FtBABlZ50YEKK7%2BNho0UUzRX9pjnUfzDqXp9d7z01%2BpZVr%2BtlQR2jCIojvDndw3QXwWTNjnVi1MN0EfLdO4qD9FK4rYB55ho378uZTHZ
https://lh3.googleusercontent.com/proxy/pcGssxNyX1z-ApZ82iwR3FTJPchqKOMkPz98--oaI1ndaZw6JCmF5_1w22I7AdmrFb_CCWt29iov3Z5FAZ9EeMvANnVOTz9zYWBNEBrYNB9nCkTK2qQYvAElMPd4Cg
https://i.imgur.com/htYfykD.jpg
https://img8.yna.co.kr/photo/yna/YH/2016/12/19/PYH2016121907910001300_P4.jpg
</evidence>
