Map creation - exporting PNG for import into FC

[Zumwalt_446]

I am creating a test map in qGIS and attempting to import it into the FC map editor. My terrain import into qGIS is done using a GeoTIFF file for the area of interest; I then change the style for that layer to use a singleband pseudocolor style with several elevation bins. I can see from the layer display in qGIS that the elevation is being correctly processed and has the correct color applied based on the style specification.

However, when I export this as a PNG and then import the PNG into the Map Editor, portions of the map show as "Elevation Unknown" in the map scan. Are there additional steps required beyond what I have described above?

The PNG I am using is attached for reference.

[CapnDarwin]

How big is the map? I'll see if I can get William to get back to you as our map guru.

[WildCatNL]

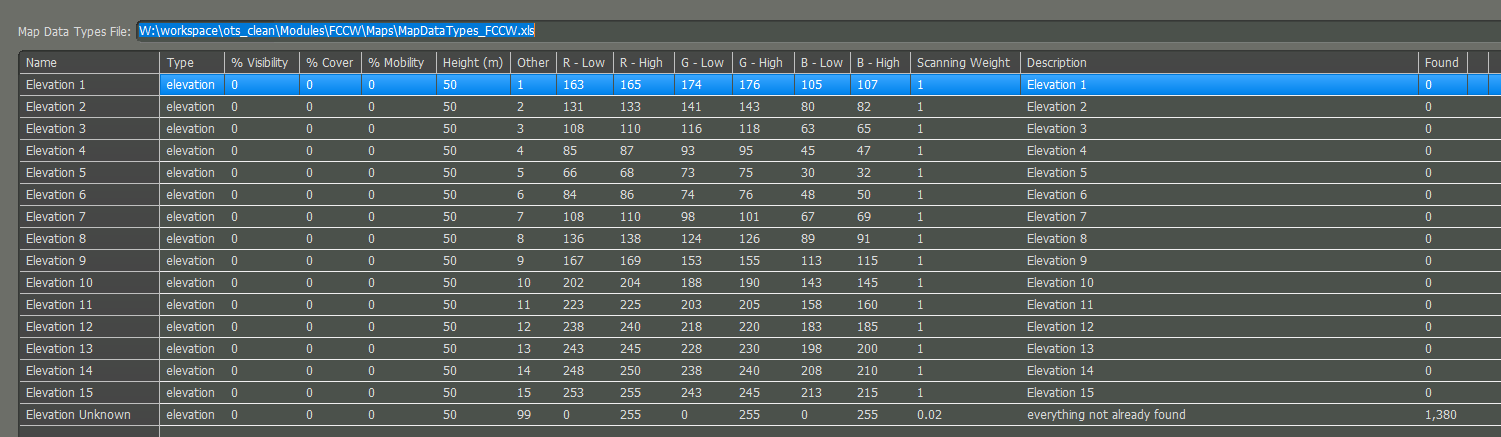

The colors used for elevation do not match the (narrow) bands defined for the elevations in the MapDataTypes_FCCW.xls spreadsheet:

How did you pick the colors? Which style did you apply to the elevation data?
The most frequent green color on the map is RGB 141, 151, 90 which falls outside all the 15 elevation colors.
